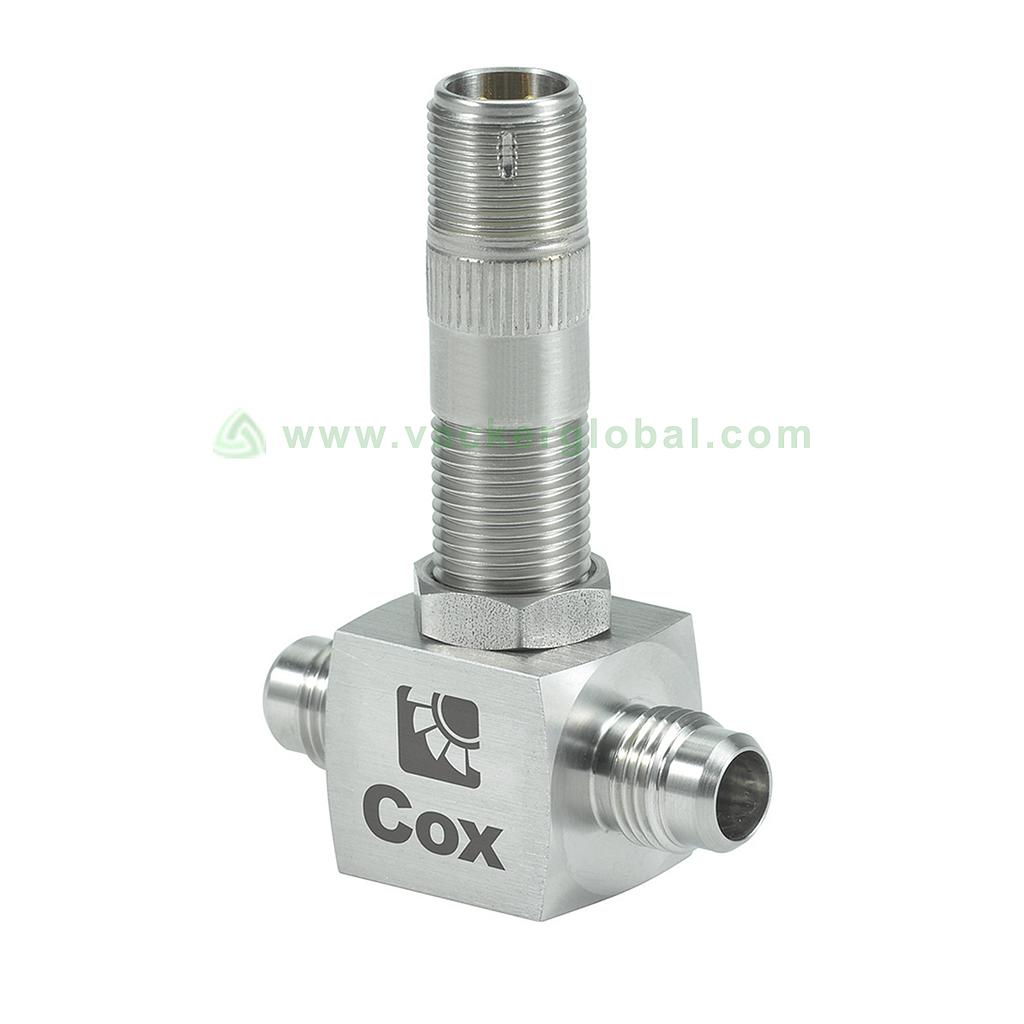

LoFlo Turbine Meters

LoFlo Turbine Meters

LoFlo Turbine Meters model no [VAC- LoFlo- Turbine- Meters]

Size 3/8 in.
Temperature Range Up to 450 °F
Flow Range 0.006 to 1.25 gpm, 2.20 to 475 lb/hr
Pressure Range Up to 5,000 PSI
Accuracy Repeatability ±0.25 %

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us


    Introduction

    The LoFlo Turbine Meters are designed to provide exceptional repeatability and speed of response when measuring very low flow rates. It has a cantilever axial helical rotor design and robust ceramic ball bearings. The meter design is suited for more rugged applications. It has a stainless steel square body that facilitates 5000 psi line pressure and provides flat wrench surfaces to assist in installation and removal. The velocity of the fluid creates rotational energy on the rotor when fluid passes through the meter. The rotor blades, passing through a magnetic or radiofrequency field, generate pulses proportional to flow. Each pulse is transmitted to the meter electronics, where it amplifies the pulse output.

    Applications of LoFlo Turbine Meters model no [VAC- LoFlo- Turbine- Meters]

    1. It can be used in commercial and non-commercial applications.

    2. It can be used in concrete production.

    3. It can be used in petrochemical and refining industries.

    4. It can be used in the oil and gas industries.

     Features of LoFlo Turbine Meters model no [VAC- LoFlo- Turbine- Meters]

    1.  It has a helical rotor design

    2.  It has high-performance ceramic ball bearing

    3.  It has NVLAP accredited facility with NIST traceable standards

     Specifications of LoFlo Turbine Meters model no [VAC- LoFlo- Turbine- Meters]

    • Its size can range from 3/8 in.

    • Its working temperature range is Up to 450 °F

    • The flow range is   0.006 to 1.25 GPM or  2.20 to 475 lb/hr

    • The pressure range is Up to 5000 PSI.

    • The accuracy is ±0.25 %

    We supply this LoFlo Turbine Meters that can be used in various industries and applications in the United Arab Emirates. Contact us for this LoFlo Turbine Meters in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
