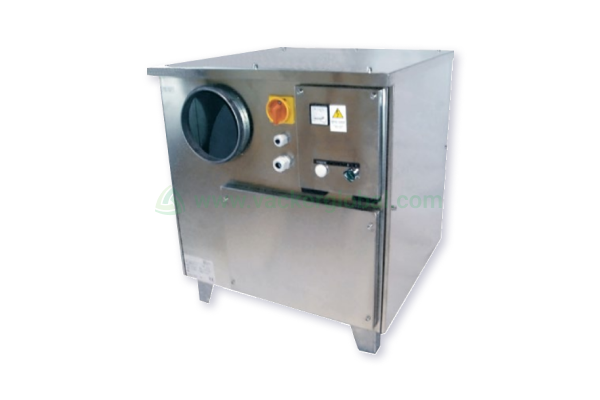

DFRB-090-E Desiccant Dehumidifier

7,432.60 USD 7,432.60 USD 7432.6 USD

26,000.00 AED

DFRB-090-E Desiccant Dehumidifier

DFRB-090-E Desiccant Dehumidifier

Process/Dry Air Flow: 950/700 Nm3/h
Available Pressure for Ducting: 200 Pa
Reactivation Air Flow: 250 Nm3/h
Available Pressure for Ducting: 50 Pa
Nominal Drying Capacity (*): 4.2 kg/h
Total Power Supply: 4.8 Kw
Electrical Supply: 400V/III+N/50Hz

Days
Hours
Mins
Secs
1

VSKU: 1001000367

7,432.60 USD 7,432.60 USD 7432.6 USD

26,000.00 AED

    This combination does not exist.


    Add to Cart Buy Now

    Category:

  • Dehumidifier

  •                                                         DRFB-090-E Desiccant Dehumidifier


    The DRFB-090-E Desiccant Dehumidifier meets the current technical demands by providing operational safety, user comfort, and cost effectiveness as its key attributes. Equipped with a high-performance desiccant rotor, it ensures rapid and effective dehumidification even in a challenging environment.

    The unit boasts user-friendly controls, enabling precise humidity level adjustments and offers low maintenance operation. Its energy-efficient design not only provides cost savings but also reduces environmental impact.


    Features

    1. Self-supporting stainless steel sheet housing that is easily serviceable

    2. Air intake equipped with a G4 filter mat and a centrifugal air fan with a direct motor drive

    3. Rotary desiccant element driven by a gear motor, teeth pulley, and transmission belt, divided into three sections for handling dry, heat recovery, and wet water streams

    4. Incorporates partition and peripheral contact-type air seals

    5. Utilizes a PTC-type desiccant reactivation air heater with self-limited operation temperature

    Applications

    1. Food industry

    2. Pharmaceutical industry

    3. Data centres

    4.  Automotive industry

    5. Fertilizer and chemical industry

    Specifications

    1. Process/dry air flow   950/700 Nm³/h

    2. Available pressure for ducting    200 Pa

    3. Reactivation air flow     250 Nm³/h

    4. Available pressure for ducting    50 Pa

    5. Nominal drying capacity(*)    4,2 kg/h

    6. Total power supply     4,8 Kw

    7. Motors power    0,29 Kw

    8. Reactivation heater power     4,5(Nominal) Kw,    7,2(Maxim)Kw

    9. Electrical supply     400V/|||+N/50Hz
