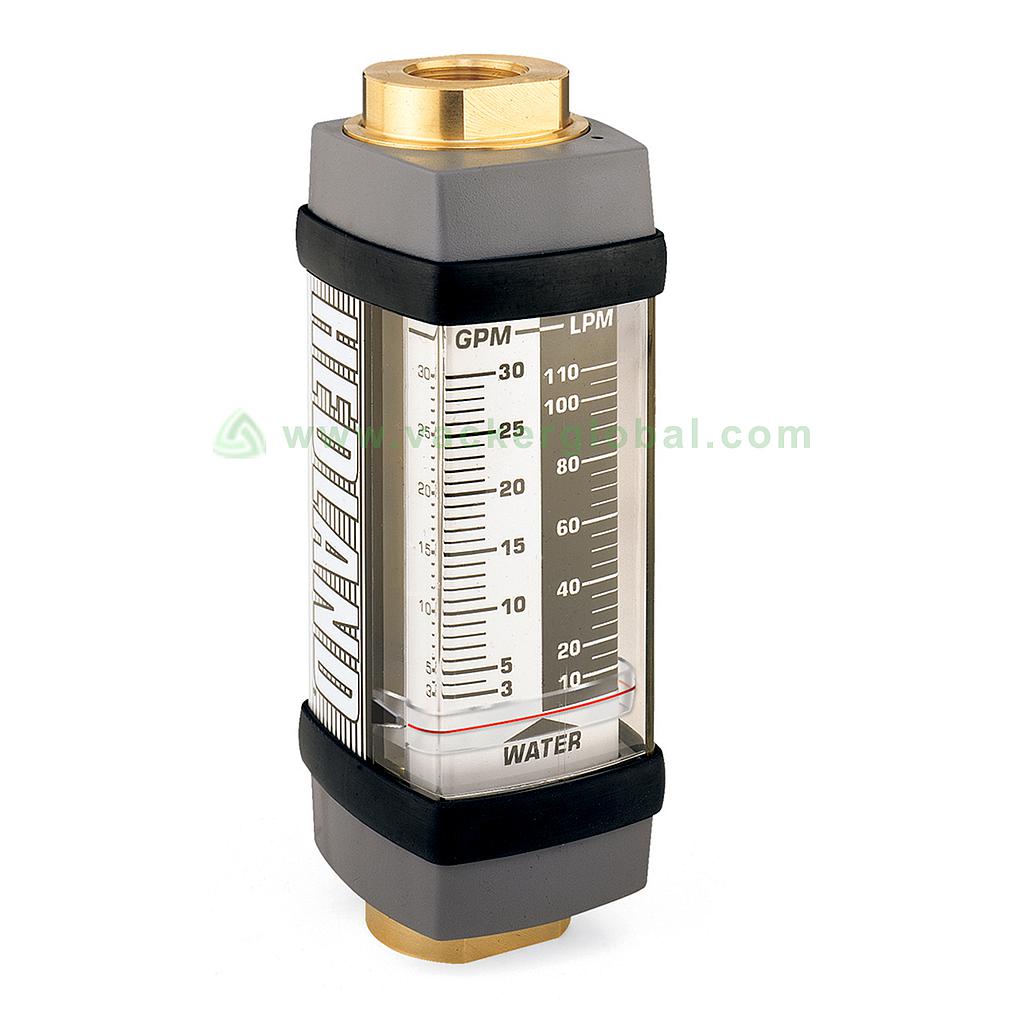

Water and Other Fluid Meters
Water and Other Fluid Meters model no [VAC- Water- and Other -Fluid Meters]
Size 1/4 to 3 in.
Temperature Range -20 to 240 °F
Flow Range 0.02 to 275 gpm
Pressure Range Up to 6000 PSI
Accuracy ±2 %
(1/4 inch only) ±7 %
VSKU:
Introduction
This meter is used in various industries that require a flow rate of water and solvents. These meters are cost-effective that provides an indication of flow without the use of additional electronics. glycol mixtures, water-in-oil, glycerin, and other various coolants are examples of fluids. Different types of material are used to make the meter. Various end fittings can be used. Expansion options are available to allow integration into remote systems via electronic output. They are available in seven port sizes from 1/4 to 3 inches for flow ranges from 0.02 to 0.20 GPM (0.1 to 0.75 lpm) through 20…300 GPM (100 to 1100 lpm), the meters are calibrated at 0.876 specific gravity for oil or other petroleum-based fluids, 1.0 for water or other water-based fluids, or 1.18 for phosphate ester liquids. The flow meter is also equipped with a 360° rotatable guard/scale which allows the meter to be installed in any orientation without regard to scale direction. The unique-loaded design of this variable area flowmeter decreases viscosity sensitivity and allows it to be installed in any position, including inverted. The guard/scale can be rotated 360° to optimize readability once the meter is permanently installed. The standard flow meter is a unidirectional device. The flow is measured in the forward direction only.
Applications of Water and Other Fluid Meters model no [VAC- Water- and Other -Fluid Meters]
It can be used in oil and gas
It can be used in refining
It can be used in chemical metering
Features of Water and Other Fluid Meters model no [VAC- Water- and Other -Fluid Meters]
It has internal calibrated spring
It has a 360-degree rotatable guard/scale
It has a direct reading
It has special scales available
It has easier to read linear scale
It does not require flow straighteners or special piping
It is relatively insensitive to shock and vibration
Specifications of Water and Other Fluid Meters model no [VAC- Water- and Other -Fluid Meters]
Its size can range from 1/4 to 3 in.
Its working temperature range is -20 to 240 °F
Its flow range is 0.02 to 275 GPM
Its pressure range is Up to 6000 PSI
Its accuracy is ±2 %, (1/4 inch only) ±7
We supply this Water and Other Fluid Meters that can be used in various industries and applications in the United Arab Emirates. Contact us for this Water and Other Fluid Meters in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
