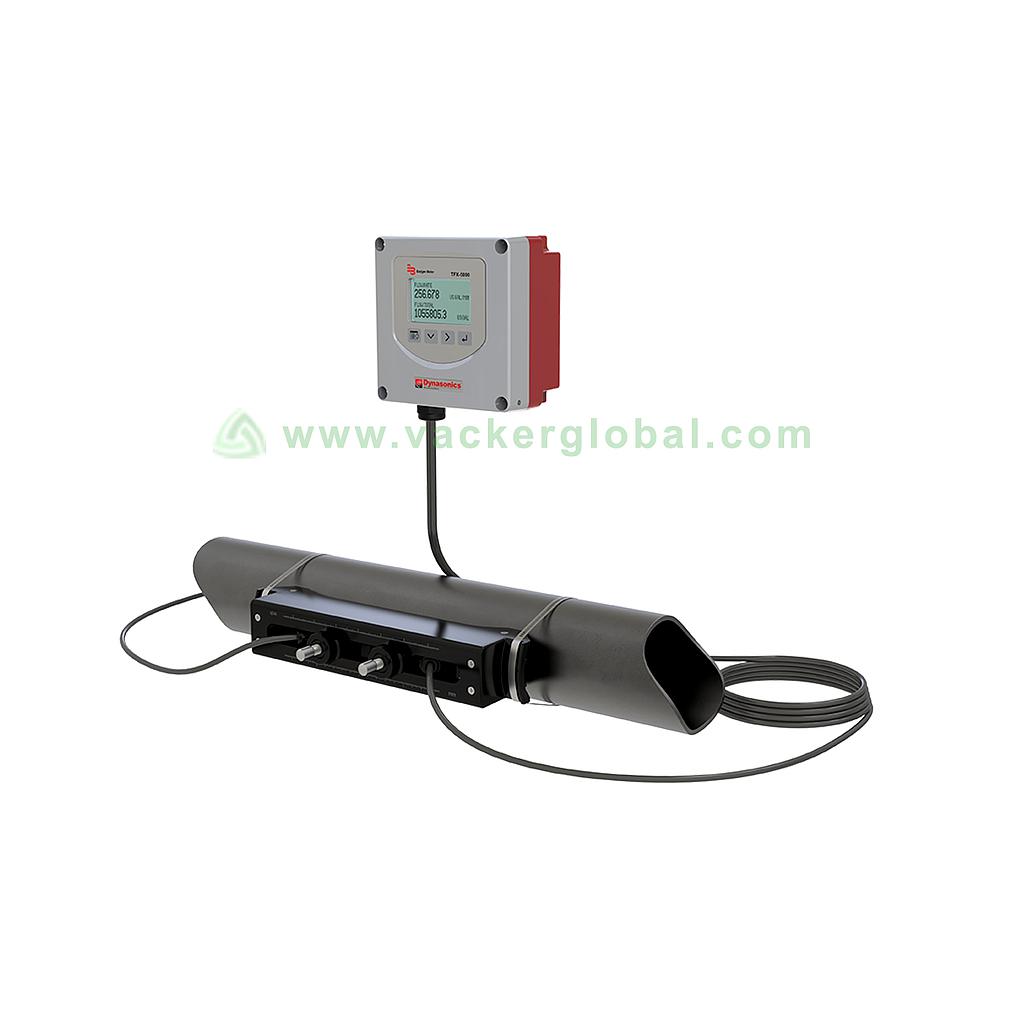

TFX-5000 Ultrasonic Clamp-on Flow Meter
TFX-5000 Ultrasonic Clamp-on Flow Meter
Size: 0.5” – 2” (12mm - 50mm)
Flow transmitter model: DQ-G-UZ-R-S-AC-WW-C-XX-S-G-F
Model: TFX-5000 Ultrasonic Clamp-On Meter
Certification: General Area US/Canada, CE
Transducer Type: Small pipe, universal (not available with conduit)
Transmitter Type: 110/220V AC Remote Mounted
Display: Display and Keypad
Remote Cable Length: 15 feet (4.5 m)
Conduit Type and Length: None
Hardware: M20 Threads, Poly cable glands
Endpoint Wiring Method: None
Communication/Output: Standard Output (Modbus RTU or BACnet MS/TP field selectable)
Units of Measure Totalizer/: Gallons/gallons per minute
Flowrate (field selectable, additional options available)
Testing & Tagging: Factory Calibrated
VSKU: 1010000201
Introduction
This meter measures volumetric flow and heating/cooling energy rates in both solids and liquids. This meter clamps onto the outside of pipes and does not contact the internal liquid. This ultrasonic meter is equipped with heat flow capabilities that measure the rate and quantity of heat delivered or removed from devices such as heat exchangers. By measuring the volumetric flow rate of the heat exchanger liquid, the temperature at the inlet pipe, and the temperature at the outlet pipe, the energy usage can be calculated. By applying a scaling factor, this heat flow measurement can be expressed in various units (Btu, Watts, Joules, Kilowatts, and others).
The TFX-5000 meter is available in two versions:
• A flow meter for water delivery, sewage, cooling water, alcohols, chemical
• A heating/cooling energy flow meter used in conjunction with dual clamp-on RTDs for temperature measurement—ideal for hydronic process and HVAC applications
Applications of TFX-5000 Ultrasonic Clamp-on Flow Meter model no [VAC- TFX-5000 Ultrasonic Clamp-on Flow Meter]
It can be used in irrigation
It can be used in petrochemical
It can be used in refining
It can be used in water and wastewater treatment
Features of TFX -5000 Ultrasonic Clamp-on Flow Meter model no [VAC- TFX-5000 Ultrasonic Clamp-on Flow Meter]
It has bidirectional full pipe flow measurement
It has data logging 8GB with real-time clock
It has set up through keypad interface and SoloCUE software
It has a non-invasive clamp-on ultrasonic transit time flow meter
It has Btu/heat energy metering option
It can connect to BEACON AMA and AquaCUE flow analytics
It has Modbus RTU, BACnet MS/TP, and Ethernet communications
Specifications of TFX -5000 Ultrasonic Clamp-on Flow Meter model no [VAC- TFX-5000 Ultrasonic Clamp-on Flow Meter]
Its size can range from 1/2 to 48 in.
Its working temperature range is -40 to 350 °F
Its flow range is 0.07 to 33,000 GPM
Its accuracy is up to ± 0.5 %
We supply this TFX -5000 Ultrasonic Clamp-on Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this TFX -5000 Ultrasonic Clamp-on Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
